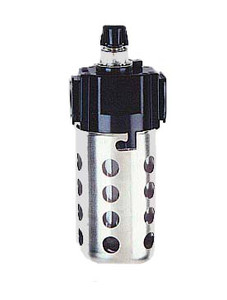

Arrow Pneumatics Standard Arrowfog Lubricator 1/4" (Poly Bowl) L352
Arrow Pneumatics Standard Arrowfog Lubricator 1/4" (Poly Bowl) L352
Product Description
Arrow Pneumatics Standard Arrowfog Lubricator 1/4" (Poly Bowl) 16 SCFM
|
Features
|
| • Oil delivery at low air flow approximately 2 scfm |
| • Aluminum housing |
| • 3-position non-rising adjustment knob; push to lock, pull to adjust, detach for tamper resistant |
| • Lubricator my be filled without shutting down air line |
| • Can be converted on-line to Ultrafog lubricator with interchangeable module Part #RKL452 |
|
Specifications
|
|
|
Polycarbonate Bowl with Bowl Guard
|
• Max. pressure 150psig |
| • Operating temperature range 40°F to 125°F | |
|
Body
|
• Black E coated aluminum |
|
Metal Bowl
|
• Zinc, black E coated |
| • Max. pressure 200psig | |
| • Operating temperature range 40°F to 160°F | |
|
Metal Bowl with Sight
|
• Zinc, black E coated |
| • Max. pressure 200psig | |
| • Operating temperature range 40°F to 160°F | |
|
Recommended Oil
|
• SAE 10 oil or lighter |
| • Atomized average 2 micron | |
| Warning! Polycarbonate plastic bowls could rupture if exposed to incompatible chemicals whether inside or outside the bowl. If such chemicals are present, use a metal bowl. | |
 |
||||||||
|
Dimensions
|
||||||||
|
Pipe Size
|
Model Number
|
Max. Flow SCFM *
|
Bowl Capacity
|
Dimensions (Inches)
|
Weight (lbs.)
|
|||
|
A
|
B
|
C
|
D
|
|||||
|
1/4"
|
L352
|
16
|
5 oz.
|
2 3/4
|
2 1/8
|
7
|
2 1/2
|
1.0
|
|
|
||||||||
|
Flow SCFM based on 5.0psi delta p @ 100 psig inlet
|
||||||||
You don't see what you are looking for? Call us. We carry full line of pneumatic products from top manufacturers. We will find a solution that fits your need. (800) 658-3579
