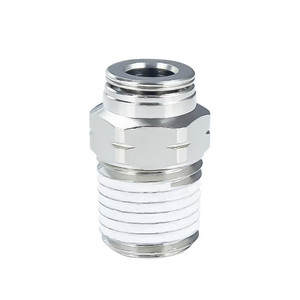

Metal Push-to-Connect Air Fitting | Taper Straight Male | PN11 Series | Nickel-Plated Brass Pneumatic Connector

The PneumaticPlus PN11 Series Taper Straight Male Fitting is a durable, high-performance metal push-to-connect air fitting ideal for compressed air and pneumatic applications. Constructed from nickel-plated brass, this fitting offers exceptional corrosion resistance and long-term reliability in industrial and commercial environments.

Featuring a tapered male NPT thread, the PN11 Series provides a secure, pressure-tight connection to threaded ports. Its push-to-connect mechanism enables fast, tool-free installation—just insert the tubing until it seats, and the stainless steel gripper teeth lock it into place while the internal O-ring seals it airtight.

Compatible with PA11, PA12, PA6, PE, and PU tubing (95A durometer or higher), the PN11 Series is a reliable choice for air compressors, automation systems, pneumatic tools, and other air-powered equipment.

Key Features:

✔ Taper Straight Male Design – Connects easily to threaded NPT ports
✔ Nickel-Plated Brass Body – Durable and corrosion-resistant for long service life
✔ Push-to-Connect Technology – Fast, tool-free installation and secure sealing
✔ Stainless Steel Gripper – Locks tubing firmly and prevents leaks
✔ Pre-Applied PTFE Threads – Ready for use, no additional sealant required
✔ Compatible with PA, PE, and PU Tubing – Ideal for pneumatic and compressed air systems

• Recommended Tubings: PA11, PA12, PA6, Polyethylene PE, Polyurethane PU (95 durometer or above)

• Acceptable Tubing Tolerance: +/- .003

• Working Temperature: -4F to 160F

• Working Pressure: Depending on tubings used and always within: 0 PSI to 217 PSI

• Vacuum Rating: 0 to 28 Hg

• Application Fields: Pneumatic Circuits
