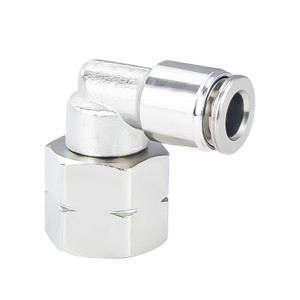

Metal Push-to-Connect Air Fitting | Swiveling Elbow Female | PN17 Series | Nickel-Plated Brass Pneumatic Connector
The PneumaticPlus PN17 Series Swiveling Elbow Female Fitting is a compact, high-quality metal push-to-connect air fitting engineered for flexible, leak-free connections in compressed air and pneumatic systems. Made from nickel-plated brass, this fitting is built to resist corrosion and endure harsh industrial environments.
Its swiveling elbow design offers directional flexibility, while the female NPT threaded port connects securely to male-threaded components. The push-to-connect mechanism enables quick, tool-free tube installation, and the stainless steel gripper teeth combined with an internal O-ring create a tight, reliable seal.
Compatible with PA11, PA12, PA6, PE, and PU tubing (95A durometer or higher), the PN17 Series is ideal for use in automation systems, pneumatic control setups, and general compressed air applications.
Key Features:
✔ Swiveling Elbow Female Design – Provides flexible directional connection to male-threaded components
✔ Nickel-Plated Brass Body – Offers durability and excellent corrosion resistance
✔ Push-to-Connect Technology – Allows fast, tool-free installation
✔ Stainless Steel Gripper – Securely holds tubing and prevents air leaks
✔ Internal O-Ring Seal – Ensures airtight performance under pressure
✔ Wide Tubing Compatibility – Works with PA, PE, and PU tubing in pneumatic systems
-
Recommended Tubings: PA11, PA12, PA6, Polyethylene PE, Polyurethane PU (95 durometer or above)
-
Acceptable Tubing Tolerance: +/- .003
-
Working Temperature: -4F to 160F
-
Working Pressure: Depending on tubings used and always within: 0 PSI to 217 PSI
-
Vacuum Rating: to 28 Hg
-
Application Fields: Pneumatic Circuits
