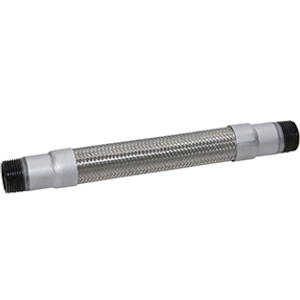

PneumaticPlus Extreme Temperature Flexible Metal Hose – 12" Long, 321 Stainless Steel, 1" NPT Carbon Steel Male Threads (PPHCS-1012)

The PPHCS-1012 is a rugged, high-performance flexible metal hose designed to handle elevated temperatures, pressure surges, and mechanical stress in demanding pneumatic and vacuum systems. It features a 321 stainless steel corrugated inner core for heat resistance and flexibility, paired with a 304 stainless steel braid and external ring for pressure containment. The 1" carbon steel male NPT fittings offer secure, corrosion-resistant connections.

Key Features:

• 321 Stainless Steel Corrugated Inner Core

• 304 Stainless Steel Braid and External Ring

• Carbon Steel Male NPT Fittings

• Maximum Working Temperature: 1,500°F

• Maximum Working Pressure: 1186 PSI at 70°F

• Rated for Full Vacuum Service

• Length: 12 Inches

• Individually Boxed for Easy Storage

Applications:
Ideal for high-temperature compressed air lines, vacuum service, or equipment that requires flexible connections in environments exposed to thermal cycling or vibration.

Disclaimer:  Specifications are believed to be accurate. Users are responsible for verifying suitability for their system before installation.
