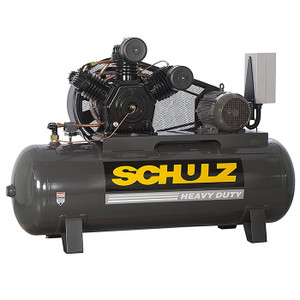

V and W - Series Heavy Duty - Model 15120HW60X-3 - 15HP 120 GALLON THREE PHASE
V and W - Series Heavy Duty - Model 15120HW60X-3 - 15HP 120 GALLON THREE PHASE
Product Description
V and W - Series Heavy Duty - Model 15120HW60X-3
- Low RPM
- Balanced drive pulleys
- Pressure gauge indicator
- Manual condensate tank drain
- NEMA designed motors
- Heavy duty cast iron construction
- ASME air receivers
- Large intake filter/silencers
- ASME safety relief valves
- Enclosed belt guard
- Vertical and horizontal designs
- UL approved pressure switch
- 2 Year Pump Warranty
- Easy access to adjust belt tension
- T.E.F.C. motors standard 10/15/20 HP - Avoids dust and humidity inside the motor
- Oversized check valves - Low pressure drop
- Notched belts standard - Less maintenance
- Powder coated - Higher protection against extreme corrosion
| Model | Code | SchulzPump | Motor | DisplacementCFM | Max.Psig | ASME Tank | Aprrox Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
| hp | phase | volt | gallon | type | lbs | |||||
| 15120HW60X-3 | 932.9337-0 | MSW60 MAX | 15 | three | 208-230/460 | 60 | 175 | 120 | horiz | 930 |
