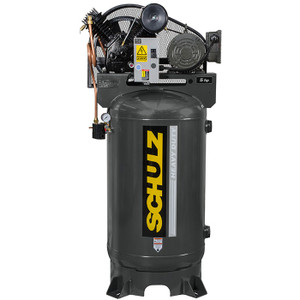

V and W - Series Heavy Duty - Model 580VV20X-1 - 5HP 80 GALLON 230V SINGLE PHASE
V and W - Series Heavy Duty - Model 580VV20X-1 - 5HP 80 GALLON 230V SINGLE PHASE
Product Description
V and W - Series Heavy Duty - Model 580VV20X-1
- Low RPM
- Balanced drive pulleys
- Pressure gauge indicator
- Manual condensate tank drain
- NEMA designed motors
- Heavy duty cast iron construction
- ASME air receivers
- Large intake filter/silencers
- ASME safety relief valves
- Enclosed belt guard
- Vertical and horizontal designs
- UL approved pressure switch
- 2 Year Pump Warranty
- Easy access to adjust belt tension
- T.E.F.C. motors standard 10/15/20 HP - Avoids dust and humidity inside the motor
- Oversized check valves - Low pressure drop
- Notched belts standard - Less maintenance
- Powder coated - Higher protection against extreme corrosion
| Model | Code | SchulzPump | Motor | DisplacementCFM | Max.Psig | ASME Tank | Aprrox Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
| hp | phase | volt | gallon | type | lbs | |||||
| 580VV20X-1 | 932.9339-0 | MSV20 MAX | 5 | single | 230 | 20 | 175 | 80 | vert | 535 |
