Product Description

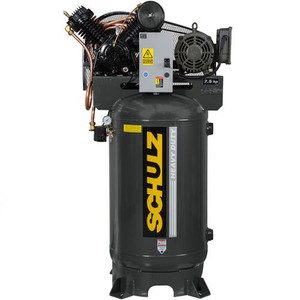

V and W - Series Heavy Duty - Model 7580VV30X-3
- Low RPM
- Balanced drive pulleys
- Pressure gauge indicator
- Manual condensate tank drain
- NEMA designed motors
- Heavy duty cast iron construction
- ASME air receivers
- Large intake filter/silencers
- ASME safety relief valves
- Enclosed belt guard
- Vertical and horizontal designs
- UL approved pressure switch
- 2 Year Pump Warranty
- Easy access to adjust belt tension
- T.E.F.C. motors standard 10/15/20 HP - Avoids dust and humidity inside the motor
- Oversized check valves - Low pressure drop
- Notched belts standard - Less maintenance
- Powder coated - Higher protection against extreme corrosion
| Model | Code | SchulzPump | Motor | DisplacementCFM | Max.Psig | ASME Tank | Aprrox Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
| hp | phase | volt | gallon | type | lbs | |||||
| 7580VV30X-3 | 932.9342-0 | MSV30 MAX | 7.5 | three | 208-230/460 | 30 | 175 | 80 | vert | 605 |
